- Plastic combined structure, using body and lens holder, can provide different matching schemes according to customer needs
- The internal structural parts and shell are made of precision molds
- Instant power supply, automatic positioning
- High temperatur
Product specificationsupport Sensor：CMOS Sensor
Drive way：Impulse type
Product material：PC+GF
driving voltage：5V
Matching resistance：15Ω-40Ω
Drive time：250ms-450ms
Filter glass thickness：0.145\ 0.21\ 0.3mm(optional）
Spectrum of filter glass：IR400-650 \AR400-1100nm
Life test：5WAt a time
collocation lens：M12screw-mount lens
Sensor frame：13mm*13mm*0.7mm
Visible window：8mm*8mm
Screw hole distance：20mm
wire：30AWG,The terminal and length are optional
Working temperature：-20℃~80℃
Working humidity：60%±15%
Overall dimensions:34.1mm*23.8mm*5.44mm

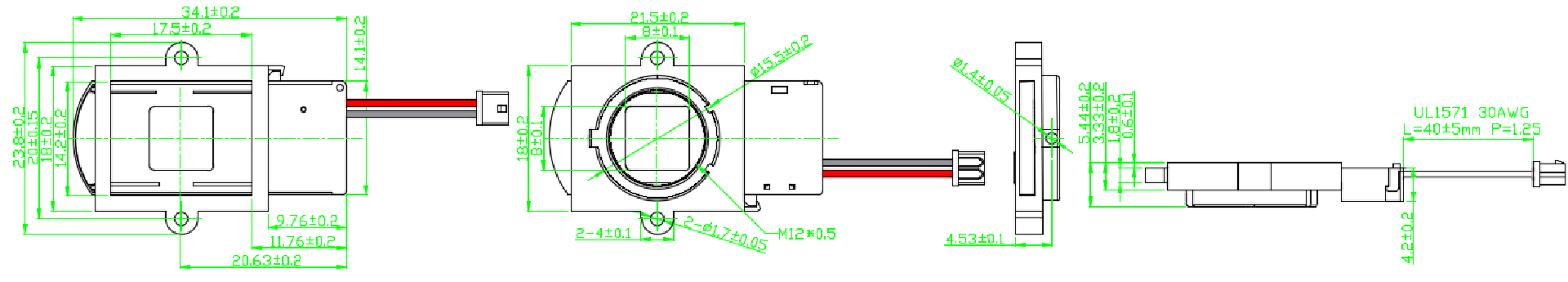

Overall dimension
