Product center
- Plastic combined structure, using body and lens holder, can provide different matching schemes according to customer needs
- The internal structural parts and shell are made of precision molds
- Instant power supply, automatic positioning
- High temperatur
Product specificationsupport Sensor：CMOS Sensor
Product material：PC+GF
Filter glass thickness：0.145\ 0.21\ 0.3mm(optional）
Spectrum of filter glass：IR400-650 \AR400-1100nm
Switch test：blue glass，Don't switch
collocation lens：M12screw-mount lens
Sensor frame：14.5mm*14.5mm*3.65mm
Visible window：8mm*8mm
Screw hole distance：20mm
Working temperature：-20℃~80℃
Working humidity：60%±15%
Overall dimensions:34mm*24.85mm*12.55mm

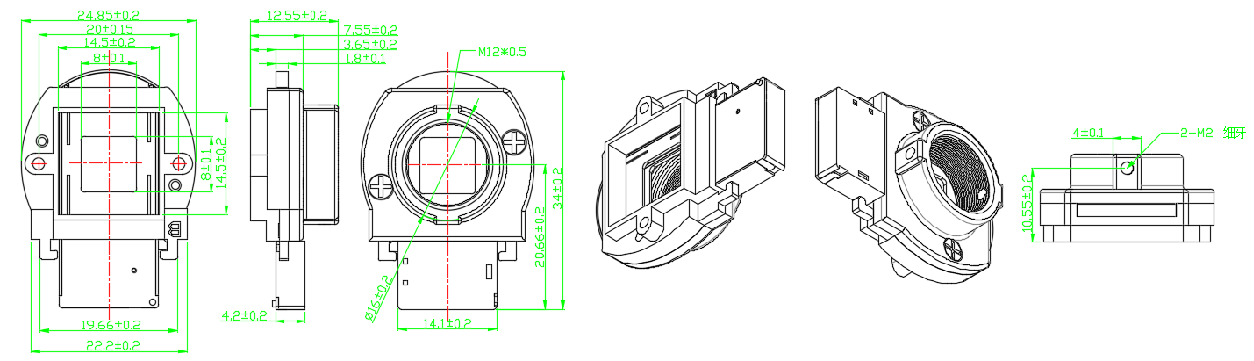

Overall dimension
