- Plastic combined structure, using body and lens holder, can provide different matching schemes according to customer needs
- The internal structural parts and shell are made of precision molds
- Instant power supply, automatic positioning
- High temperatur
Product specificationsupport Sensor：CMOS Sensor
Product material：PC+GF
Filter glass thickness：0.145\ 0.21\ 0.3mm(optional）
Spectrum of filter glass：IR400-650 \AR400-1100nm
Switch test：blue glass，Don't switch
collocation lens：M24.5 screw-mount lens
Sensor frame：17mm*17mm*3.9mm
Visible window：8mm*8mm
Screw hole distance：22mm
Working temperature：-20℃~80℃
Working humidity：60%±15%
Overall dimensions:34.85mm*28.5mm*12.3mm

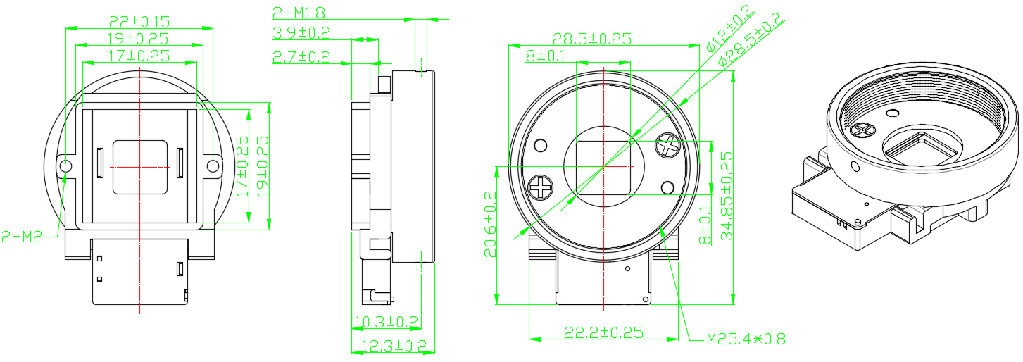

Overall dimension
