- Integral structure, small overall structure
- The internal structural parts and shell are made of precision molds
- Instant power supply, automatic positioning
- High temperature resistance without deformation
Product specificationsupport Sensor：CMOS Sensor
Drive way：Impulse type
Product material：PC+GF
driving voltage：5V
Matching resistance：10Ω-20Ω
Drive time：250ms-450ms
Filter glass thickness：0.145\ 0.21\ 0.3mm(optional）
Spectrum of filter glass：IR400-650 \AR400-1100nm
Life test：5WAt a time
collocation lens：M7screw-mount lens
Sensor frame：10.3mm*11.1mm*1.0mm
Visible window：5mm*7mm
Screw hole distance：20mm
wire：30AWG,The terminal and length are optional
Working temperature：-20℃~80℃
Working humidity：60%±15%
Overall dimensions:23.86mm*25.1mm*6.5mm

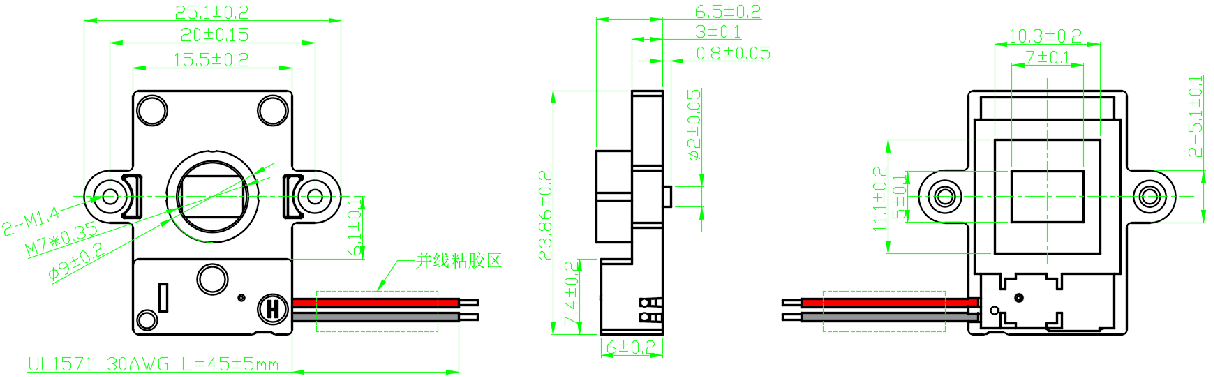

Overall dimension
