Product center
- Integral structure, small overall structure
- The internal structural parts and shell are made of precision molds
- Instant power supply, automatic positioning
- High temperature resistance without deformation
Product specificationsupport Sensor：CMOS Sensor
Drive way：Impulse type
Product material：PC+GF
driving voltage：5V
Matching resistance：10Ω-20Ω
Drive time：250ms-450ms
Filter glass thickness：0.145\ 0.21\ 0.3mm(optional）
Spectrum of filter glass：IR400-650 \AR400-1100nm
Life test：5WAt a time
Sensor frame：12.6mm*13.5mm*1.8mmVisible window：5.2mm*7.7mm
Screw hole distance：12.8*19.6mm
wire：30AWG,The terminal and length are optional
Working temperature：-20℃~80℃
Working humidity：60%±15%
Overall dimensions:27.8mm*27mm*14.67mm

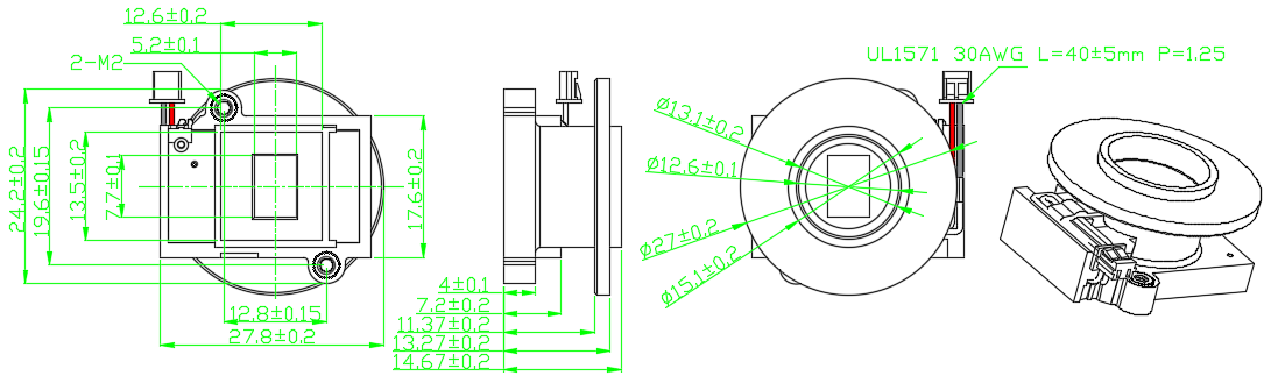

Overall dimension
