- Plastic combined structure, using body and lens holder, can provide different matching schemes according to customer needs
- The internal structural parts and shell are made of precision molds
- Instant power supply, automatic positioning
- High temperatur
Product specificationsupport Sensor：CMOS Sensor
Drive way：Impulse type
Product material：PC+GF
driving voltage：3.3V&5V
Matching resistance：25Ω-60Ω
Drive time：250ms-450ms
Filter glass thickness：0.145\0.21\ 0.3mm(optional）
Spectrum of filter glass：IR400-650 \AR400-1100
Life test：5WAt a time
collocation lens：M7screw-mount lensSensor frame：12mm*15mm*0.5mm
Visible window：8mm*8mm
Screw hole distance：20mm
wire：30AWG,The terminal and length are optional
Working temperature：-20℃~80℃
Working humidity：60%±15%
Overall dimensions:31.3mm*24.5mm*8.2mm

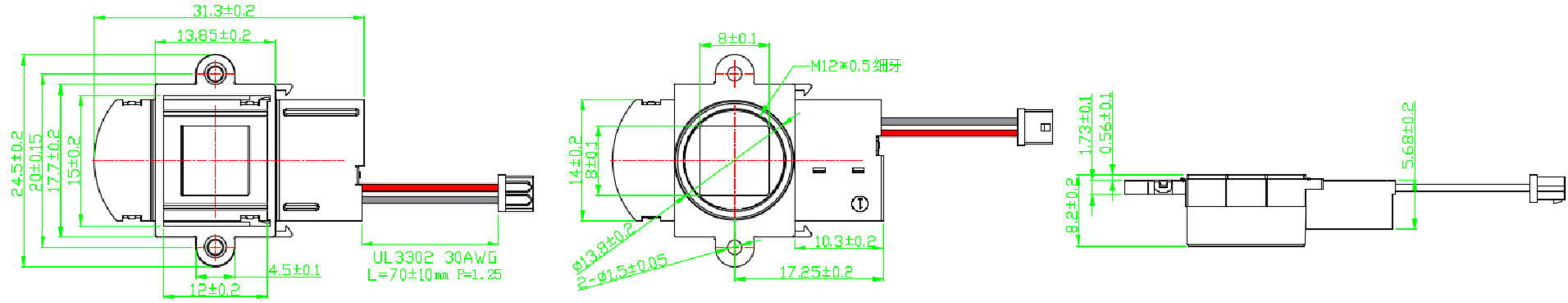

Overall dimension
